PVC Cable Granulator

Basic Info

Model NO.	TSSK75-SJ180
Customized	Customized
Certification	CE, SGS
Condition	Used
Capacity	400kg/H
Screw and Barrel	38CrMoAl, Nitrogen, Bimetallic
Application	PVC
Degassing	One Vacuum
Pelletizing Way	Wind Cooling Hot Die Faced
Delivery Time	45 Working Days
First Stage	Single Screw Extruder
Cooling Way	by Wind
Heater	Cost Al or Cost Copper
Second Stage	Twin Screw Extruder
Transport Package	Film Packing and Wood Base or Wood Case
Specification	pellets size Φ 2.5*3mm
Trademark	JORBIN
Origin	Zhangjiagang City
HS Code	84772010
Production Capacity	10sets/Year

Product Description

pvc cable granulator, The material can be a polymer mixed with PVC, some PE, some Rubber, recycling and blending and modification, functional parent granule(black carbon granule, flame-retardant granule, degradable granule, double protective granule), various cable, special material(EVA, flurin rubber, TPR sole material, UV protection material), reactive and extruding, powder coating.Working Principle
First Crush the cable with crusher, to crush the cable into small pieces, then you can send these small pieces material into our extruder directly, with the first single screw extruder and material come into the send twin screw extruder, so some PE, some rubber mixer in it also can prodcue

The advantages of this machine
1. Highly efficent: the machine is automatic and with less power consumption.2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.3. High capacity: the capacity of the machine is about 80kg/h, we can do the machine up to 1000kg/h5. The machine wih long life.

Line components

Item NO.	Item name	Quantity	Power
1	Single screw feeder	1set	2.2kW
2	TSSK75/36 twin screw extruder	1set	90kW
3	Φ180/10 Single screw extruder	1 set	55kw
4	Screen changer system	1 set	2.2kW
5	Wind-cooling hot surface cutter	1 set	2.2kw
6	The first wind transmission system	1set	4kw
7	cyclone separator	1 set	---
8	Wind-cooling vibrator	1 set	0.27X2kW
9	The second wind transmission system	1set	4kw
10	Silo	1 set	----
11	Electric cabinet	1 set	_

More machine photoes

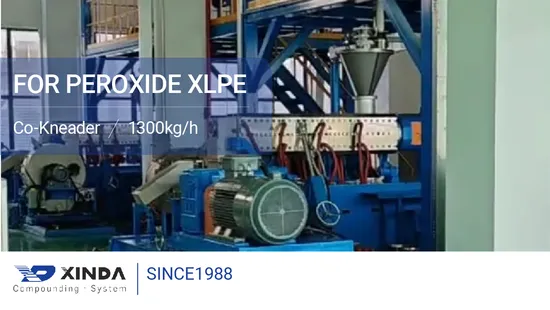

Machine lineMaterial come from the first stage twin screw into the second single screw extruder

PVC Cable Granulator

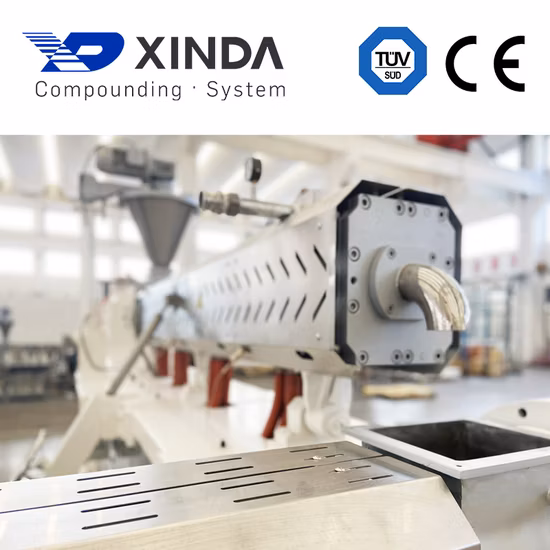

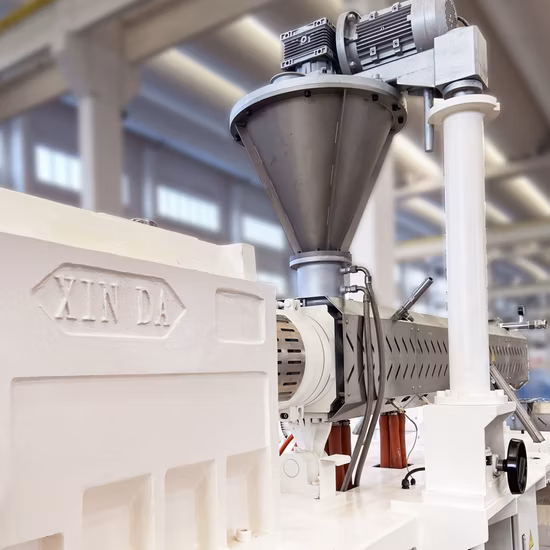

Second stage single screw extruderWind cooling pelletizing dieMaterial produce by this machineIf you need more details of this kind of machine kindly contact me, I can send you more detail photoes and vedios.

PVC Cable Granulator

1. We supply below necessary documents with the machine:

Electricity diagram
Machine certificate
General manual book/maintenance book

2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.

3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.

5. 24Hours service : Cell+86-13915707468
